SFR
Application
Application

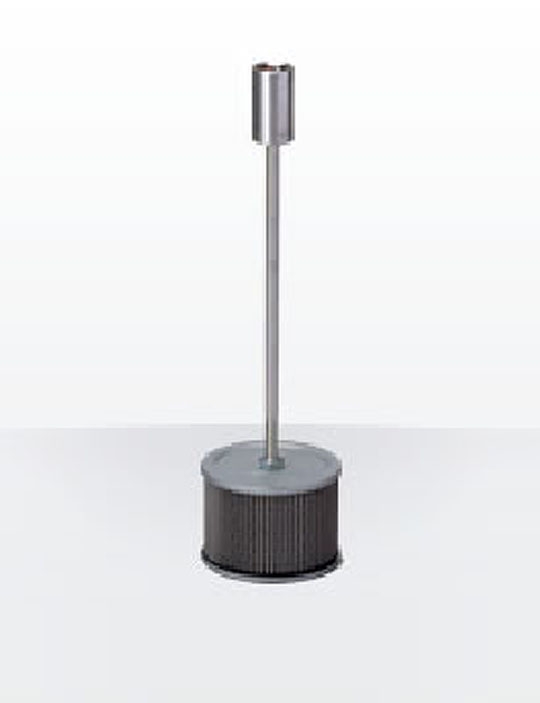

This strainer is positioned at the suction entrance of the reservoir tank to protect the hydraulic pump.
Features
● With the extension rod, strainer changes are easy regardless of the amount of oil remaining in the tank.
● Compact, yet protects a sizeable filtration area using folded wire mesh pleats as filtering media.
● Stainless steel wire mesh allows the filtering material to be cleaned and reused.
檔案下載 ：
規格說明 ：
|
Items |
Standard specifications |
Possible corresponding specifications / options, etc. |
|
Corresponding fluid |
Mineral oil |
- |
|
Maximum working pressure |
-0.1-0MPa |
- |
|
Indicator |
- |
- |
|
Relief valve (Bypass) |
- |
- |
|
Connection |
25A-80A |
- |
|
Magnet |
- |
- |
