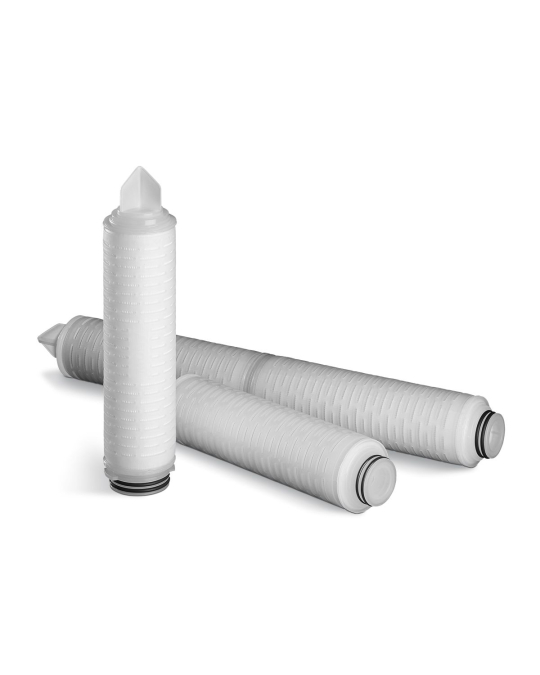

ProcessGard® PP Plus Filters
Cost-effective, polypropylene filters ensure broad chemical compatibility with various acids, bases, solvents, inks, and process water.
●Various retention ratings and fitting sizes allow design versatility to meet various process requirements
●Polypropylene construction provides broad chemical and thermal compatibility
●Highly customized configurations are available, enabling product flexibility to meet application and customer needs
Cost-effective, polypropylene filters ensure broad chemical compatibility with various acids, bases, solvents, inks, and process water.
●Various retention ratings and fitting sizes allow design versatility to meet various process requirements
●Polypropylene construction provides broad chemical and thermal compatibility
●Highly customized configurations are available, enabling product flexibility to meet application and customer needs
檔案下載：
規格說明：
| Materials of construction | Media | Polypropylene |
| Supports, core, sleeve, end caps | Polypropylene | |
| O-ring (Code-0 and -5: AS568-222, Code-7: AS568-226) | EPDM, FKM, Silicone, E-FKM | |
| Gasket (Code-F) | EPDM, FKM | |
| Retention rating (nominal) | 0.1, 0.2, 0.5, 1, 2, 3, 5, 10, 20, 30, 40 µm | |
| Operating conditions | Maximum forward differential pressure | 0.4 MPa (4.0 bar, 58 psid) @ 20°C (68°F) |
| Maximum operating temperature |
80ºC (176°F) |
|
